LTE Band Class Graphical Reference June 27, 2013 09:56
With AT&T's announcement that they are meeting some challenges related to testing operation between LTE Band Class 29 and Band Classes 2 and 4, I figured that many readers would appreciate a reference map for how these band classes relate to the US mobile radio and satellite spectrum bands.
All of these screenshots are from the AllNet Labs Spectrum Ownership Analysis Tool, where we display and provide analysis tools related to spectrum ownership for all of the US mobile radio and satellite spectrum bands for all 50 states and US territories. AllNet Labs Spectrum Ownership Analysis Tool
In the images below, the band classes are color coded Gray for Uplink Spectrum, Yellow for Downlink Spectrum, and Blue for Spectrum supporting Time Division Duplex.
All of these screenshots are from the AllNet Labs Spectrum Ownership Analysis Tool, where we display and provide analysis tools related to spectrum ownership for all of the US mobile radio and satellite spectrum bands for all 50 states and US territories. AllNet Labs Spectrum Ownership Analysis Tool
In the images below, the band classes are color coded Gray for Uplink Spectrum, Yellow for Downlink Spectrum, and Blue for Spectrum supporting Time Division Duplex.

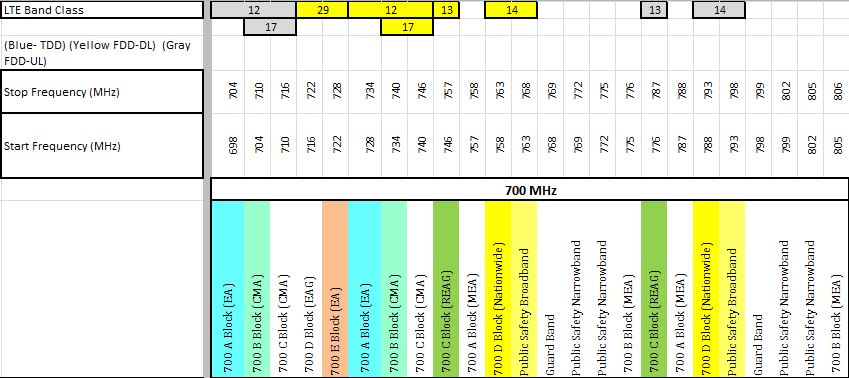

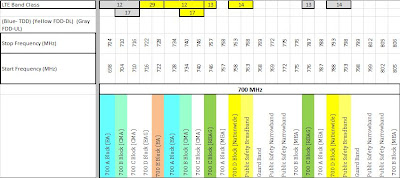

700MHz Spectrum

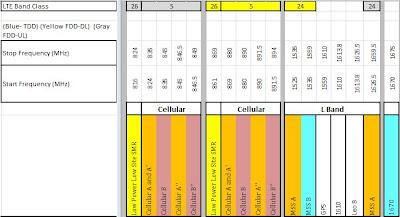

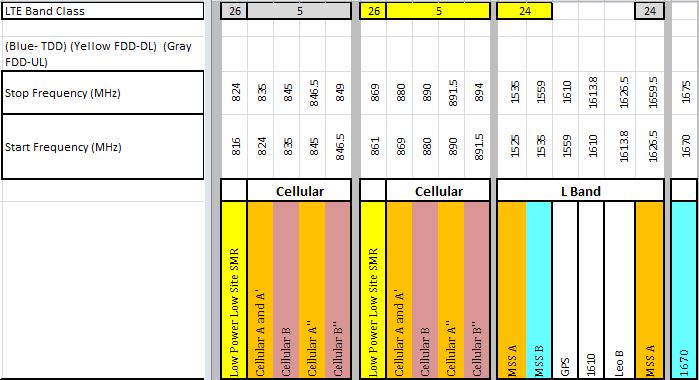

SMR/Cellular/L-Band Spectrum

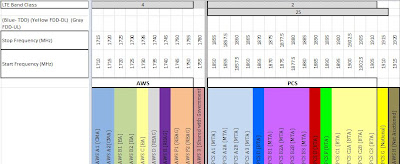

AWS/PCS Spectrum - Uplink

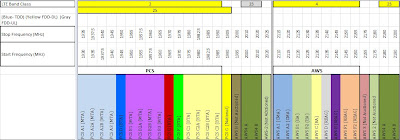

PCS/AWS Spectrum - Downlink

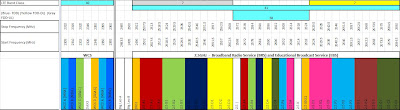

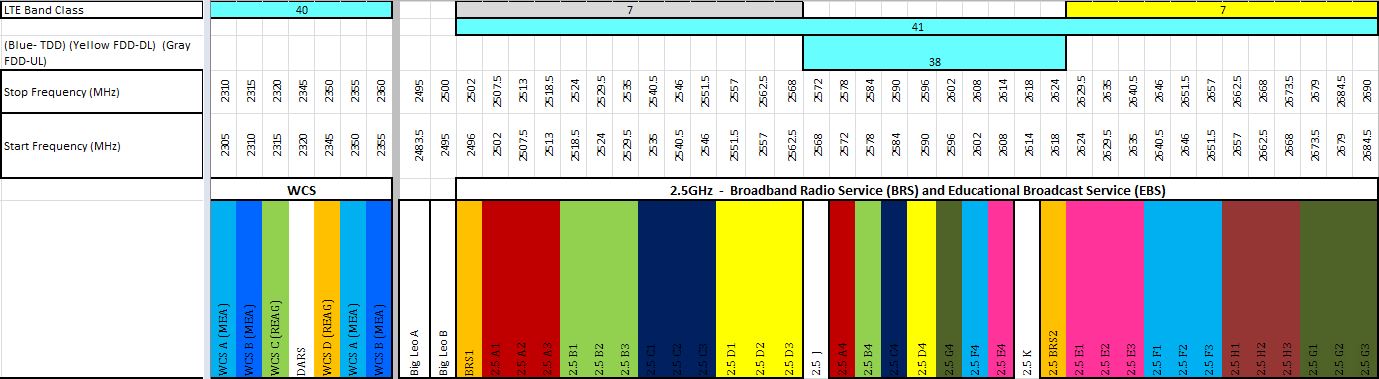

WCS/EBS/BRS Spectrum
