Verizon's AWS Deployments October 16, 2013 11:00
With the news that Verizon is beginning to turn up some of their AWS spectrum with LTE, I will examine the spectrum available for those LTE deployments in the Top 5 CMAs with the Spectrum Ownership Analysis Tool.
New York:
With this analysis, it is evident that Verizon will top out at 223 Mbps across all of the counties in the New York CMA.
Los Angeles:
In Los Angeles, I would expect Verizon to be deploying a 10 MHz LTE channel until AT&T has shifted its LTE usage of this AWS channel to it "new" 700MHz B band holding.
At this point Verizon is limited to 2 - 10x10 channels or 146 Mbps throughout the Los Angeles CMA.
Chicago:
In Chicago, Verizon holds a 20x20 AWS channel.
This combined with Verizon's 700 MHz C-band (10x10) channel will provide 223 Mbps throughout the Chicago CMA.
Philadelphia:
Detroit:
In Detroit, Verizon can again form a 20x20 AWS channel.
In the Detroit CMA, Verizon can achieve a metro through put of 223 Mbps.
New York:

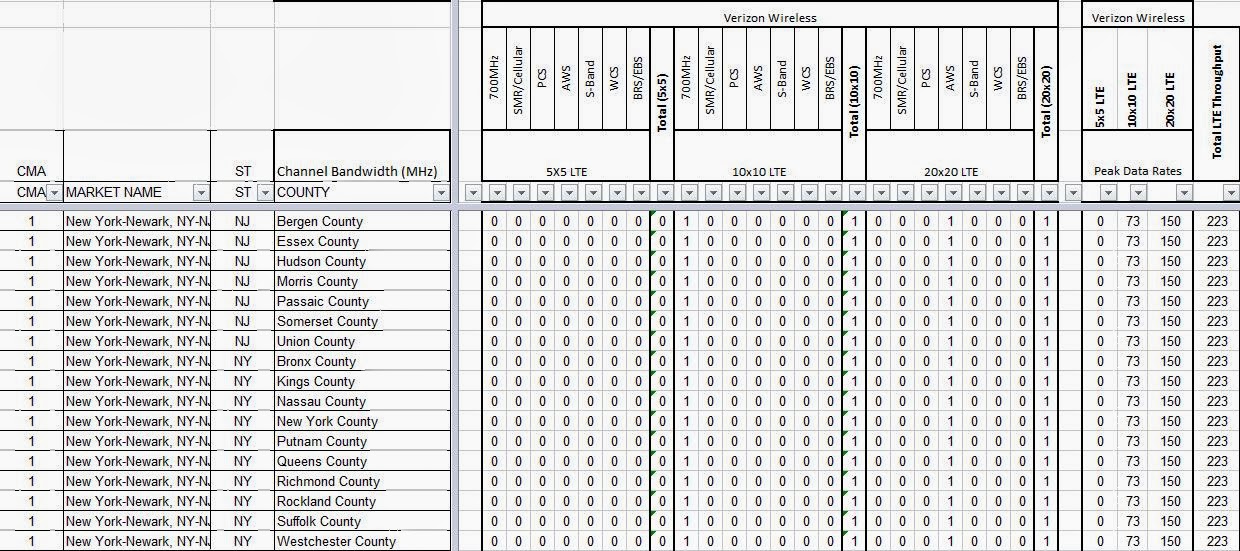

Verizon clearly holds 40 MHz of AWS spectrum. To see how this spectrum will affect their total LTE capacity I have evaluated the LTE channels that Verizon can deploy based on their stated direction. Based upon Verizon's stated direction I have eliminated any 700 MHz 5x5 LTE channels, any cellular LTE channels, and any PCS LTE channels.

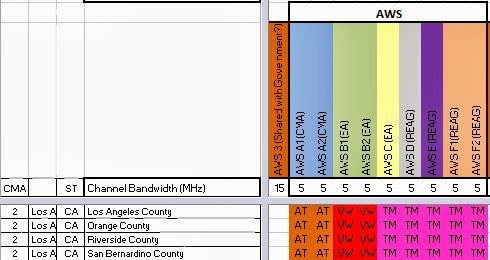

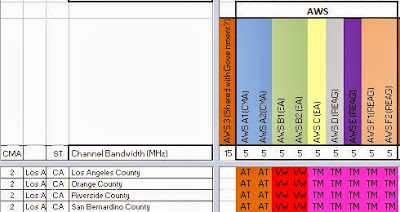

Los Angeles:
In Los Angeles, I would expect Verizon to be deploying a 10 MHz LTE channel until AT&T has shifted its LTE usage of this AWS channel to it "new" 700MHz B band holding.

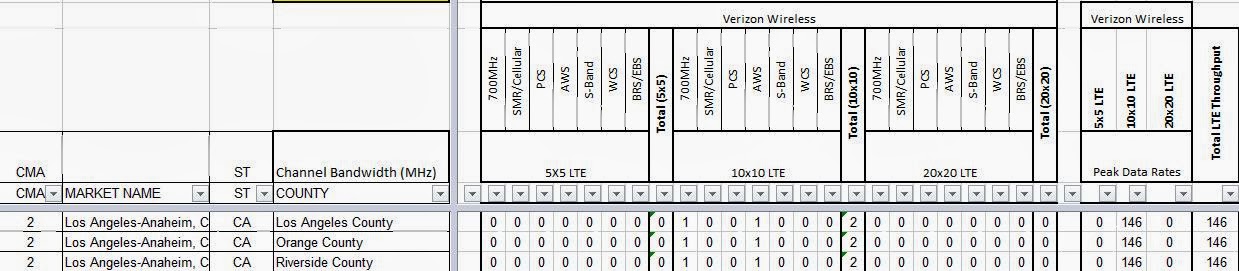

At this point Verizon is limited to 2 - 10x10 channels or 146 Mbps throughout the Los Angeles CMA.
Chicago:
In Chicago, Verizon holds a 20x20 AWS channel.
This combined with Verizon's 700 MHz C-band (10x10) channel will provide 223 Mbps throughout the Chicago CMA.

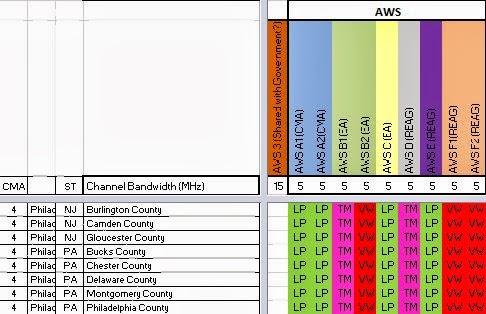

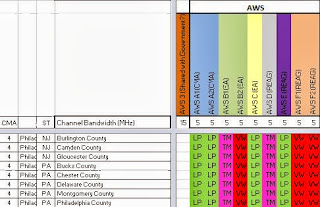

Philadelphia:
In Philadelphia, the largest channel Verizon can form is a 10x10 channel. When AT&T gets control of the Leap spectrum assets, I would expect a three-way spectrum trade to allow Verizon, T-Mobile, and AT&T to rationalize their AWS spectrum positions.

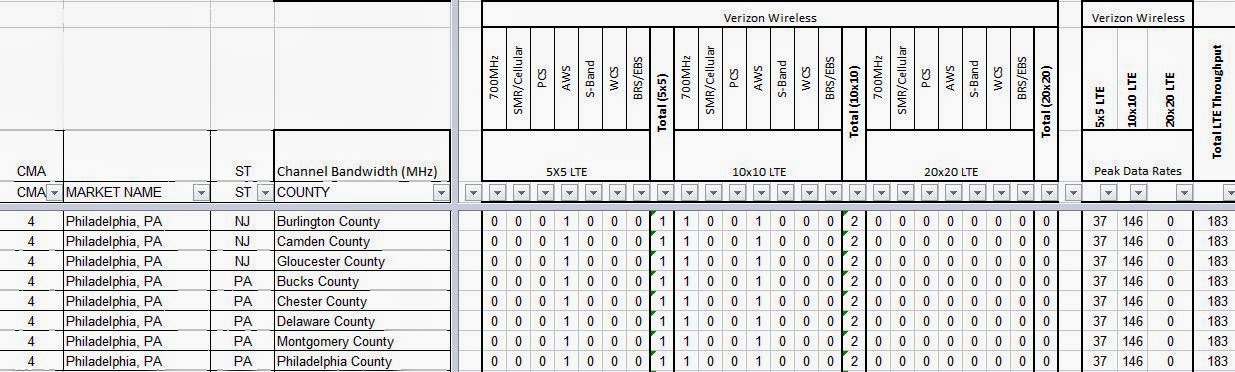

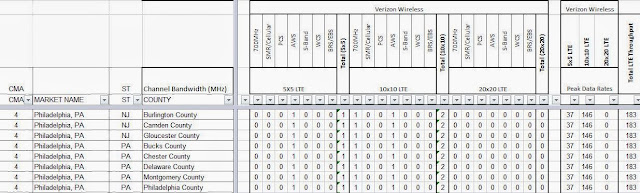

For the throughput analysis, the additional 5x5 channel that Verizon can form in the AWS frequency band is included with the 2 - 10x10 channels (AWS and 700) for a total metro throughput of 183 Mbps.

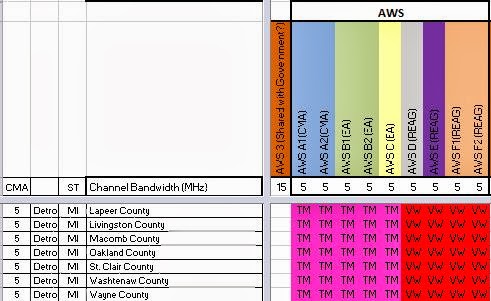

Detroit:
In Detroit, Verizon can again form a 20x20 AWS channel.
In the Detroit CMA, Verizon can achieve a metro through put of 223 Mbps.
